The MaxiFLASH VCMI Kit is a communication and measurement interface kit for MaxiSYS MSUltra, MS919, MS909 and MS909CV tablets. It combines an oscilloscope, multimeter, CAN bus tester and waveform generator for vehicle diagnostic work.
Protocol support and applications
- Supports CAN FD, four CAN channels and DoIP.
- Supports D-PDU, ISO 22900-1 and ISO 22900-2, and is RP1210 compliant.
- Diagnostic applications include Ford, Freightliner, Mercedes, Audi and BMW.

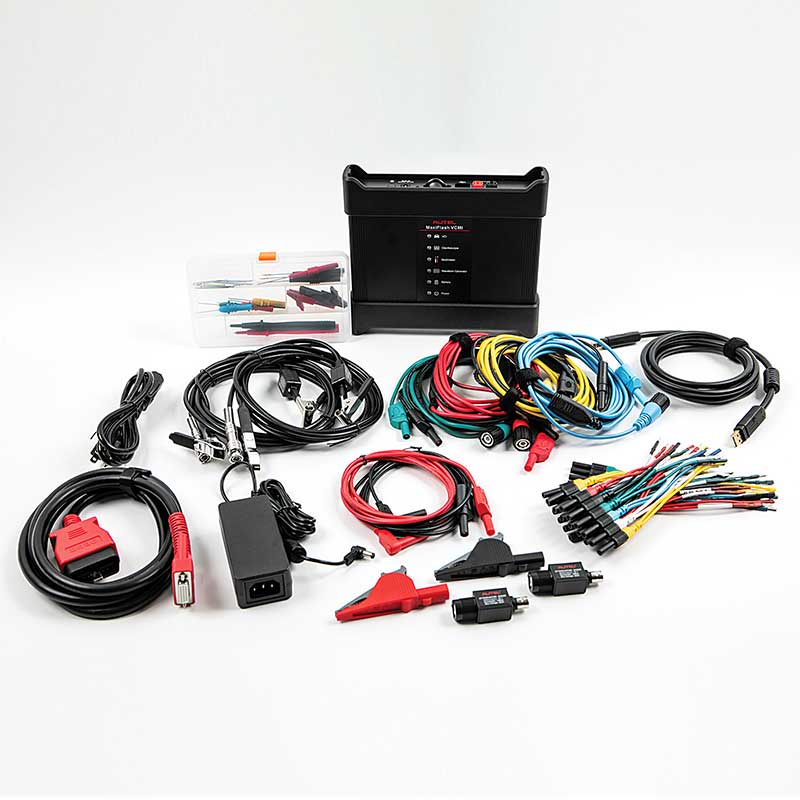

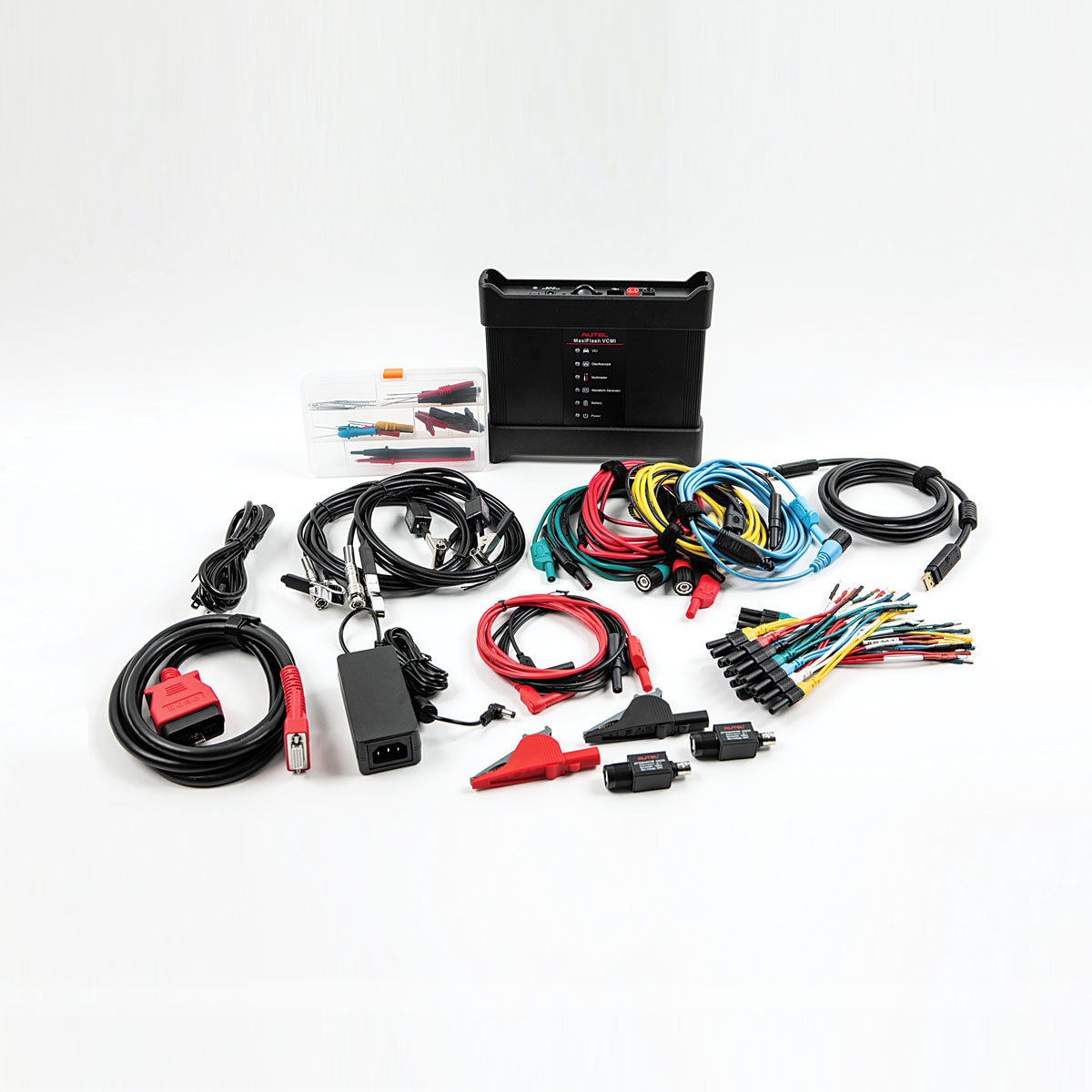

Kit contents
- VCMI communication and measurement interface.

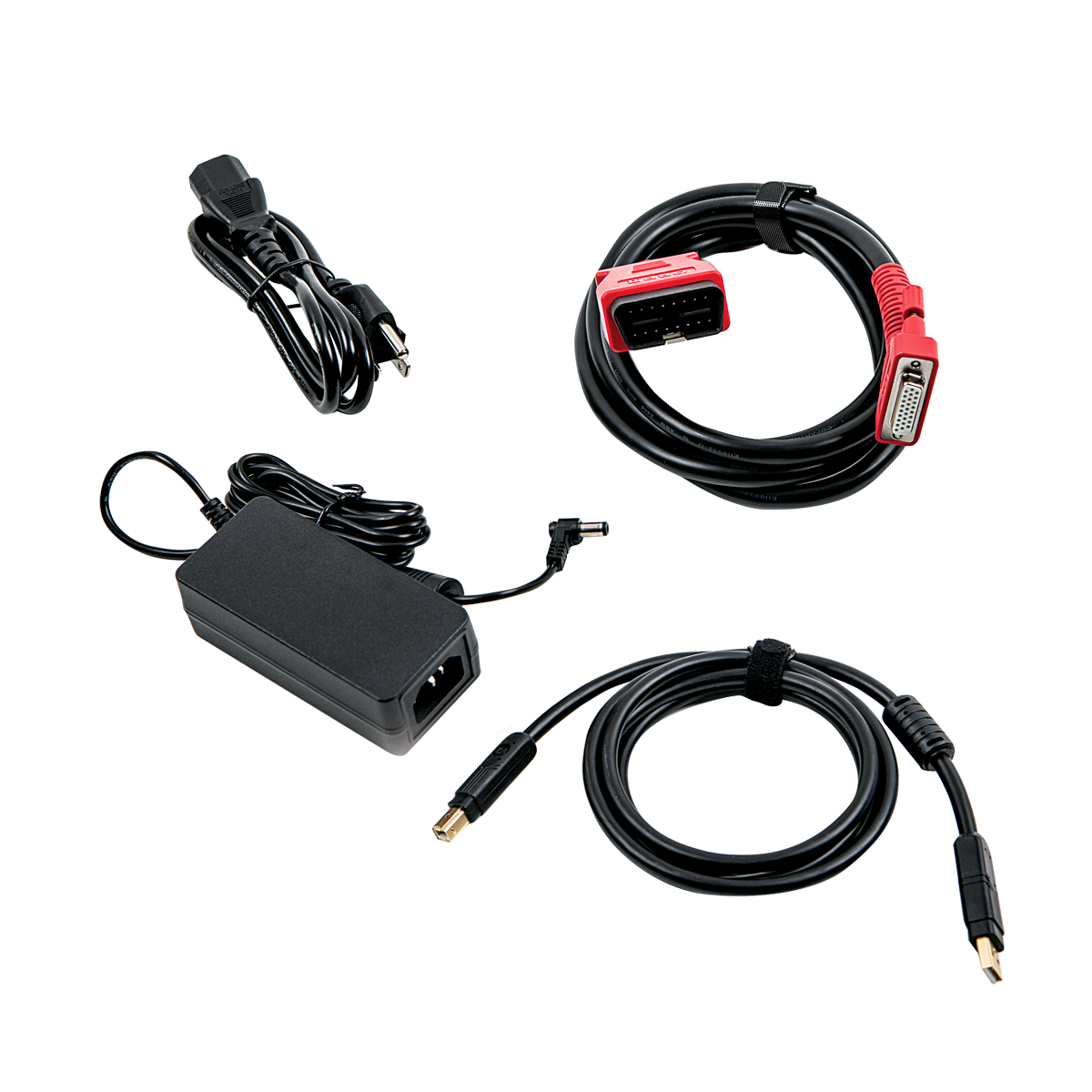

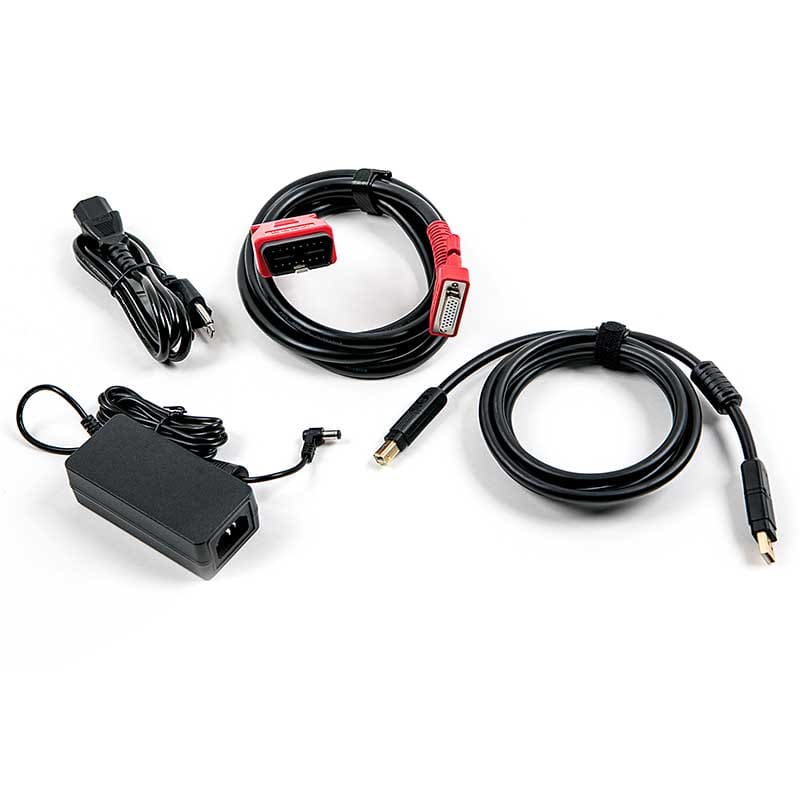

- OBDII main cable, AC/DC power supply and USB 2.0 cable.

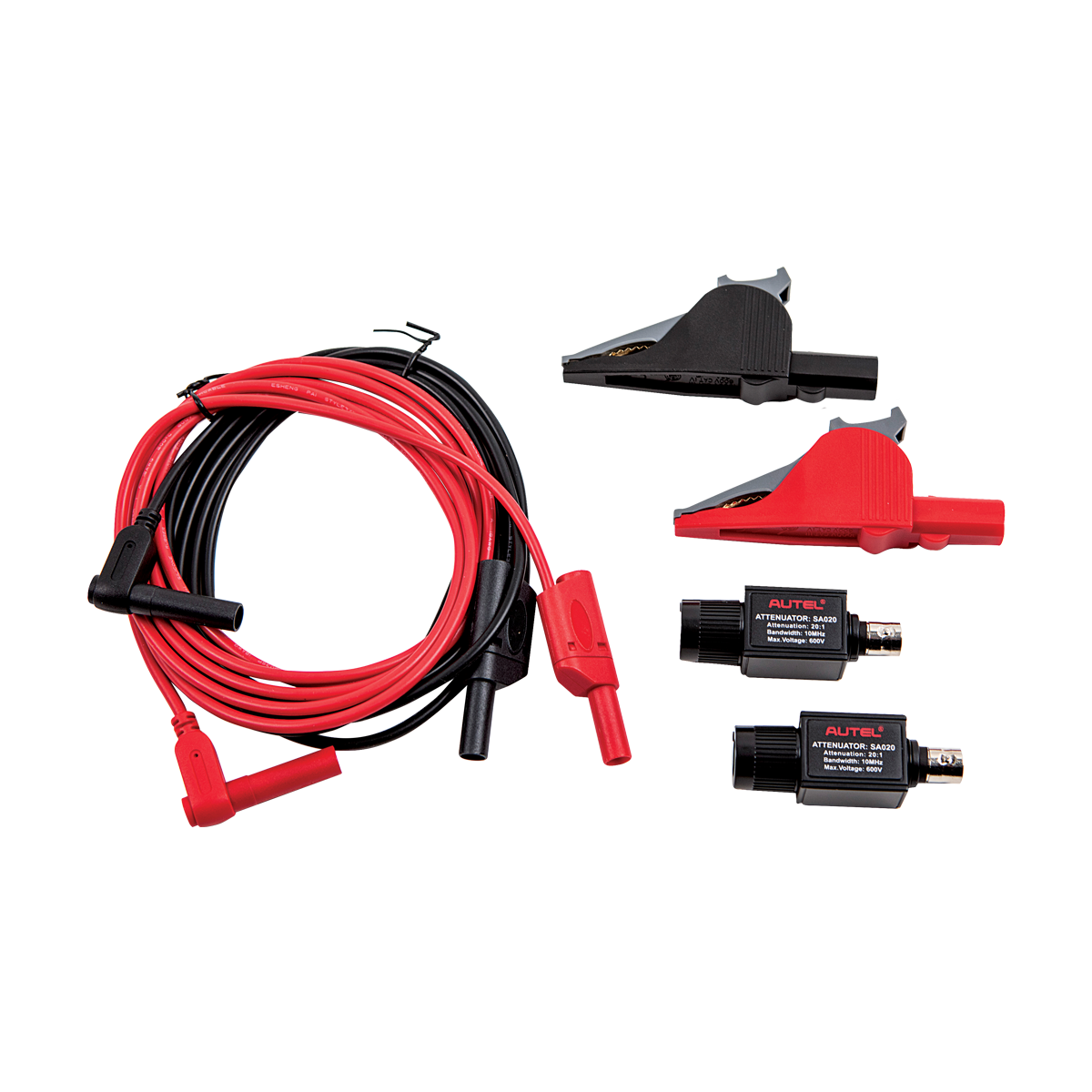

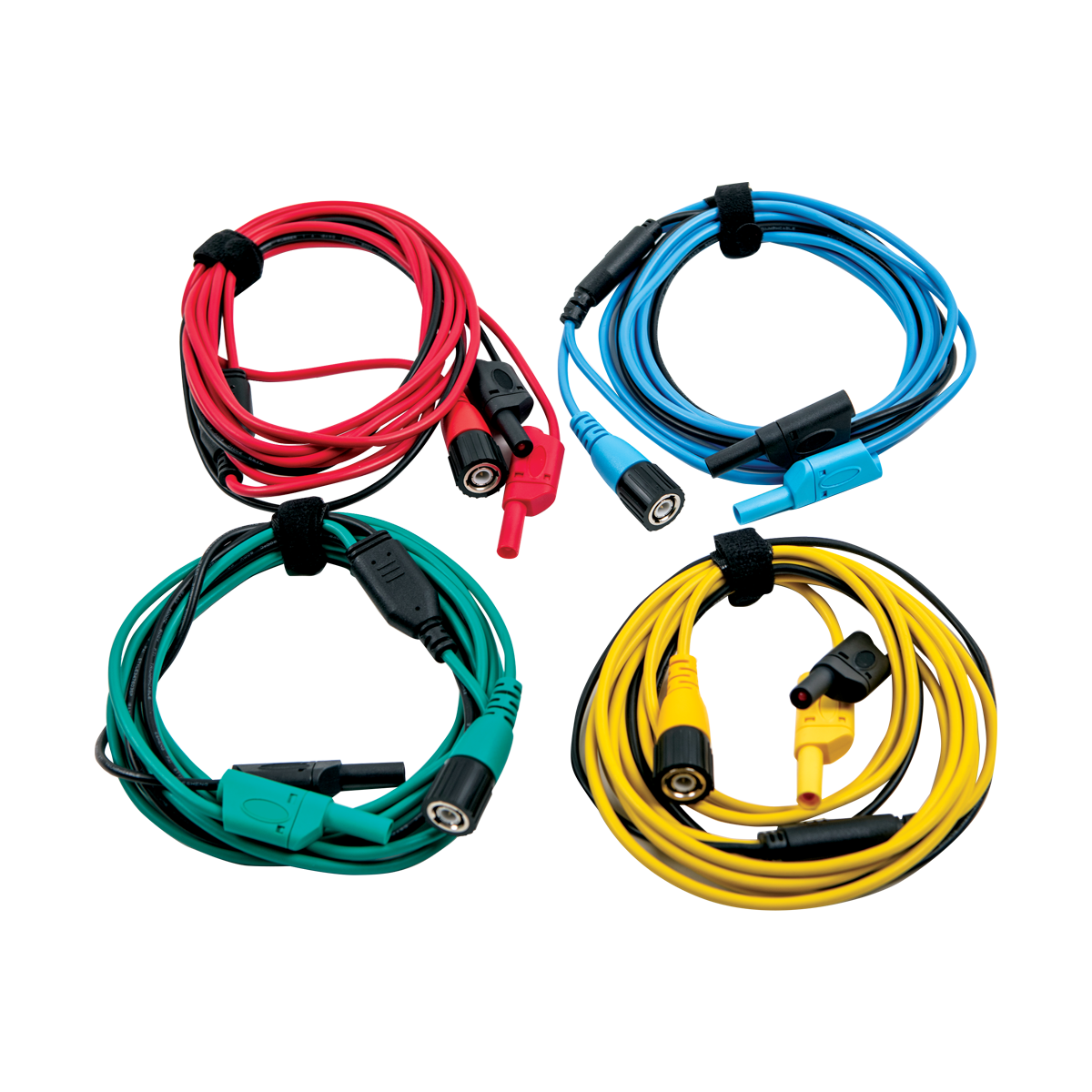

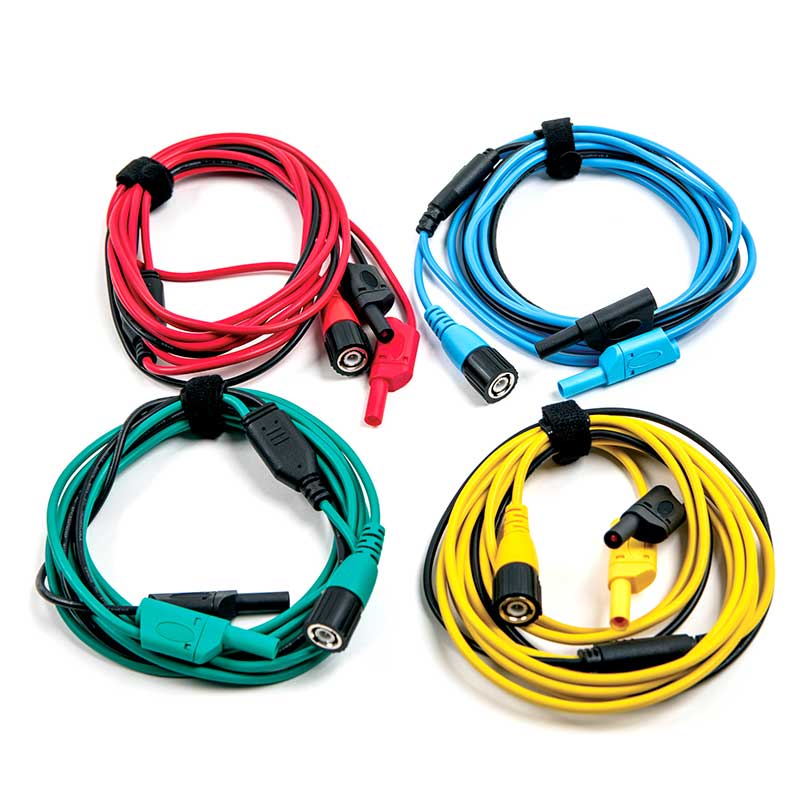

- Four scope test leads and two multimeter test leads.

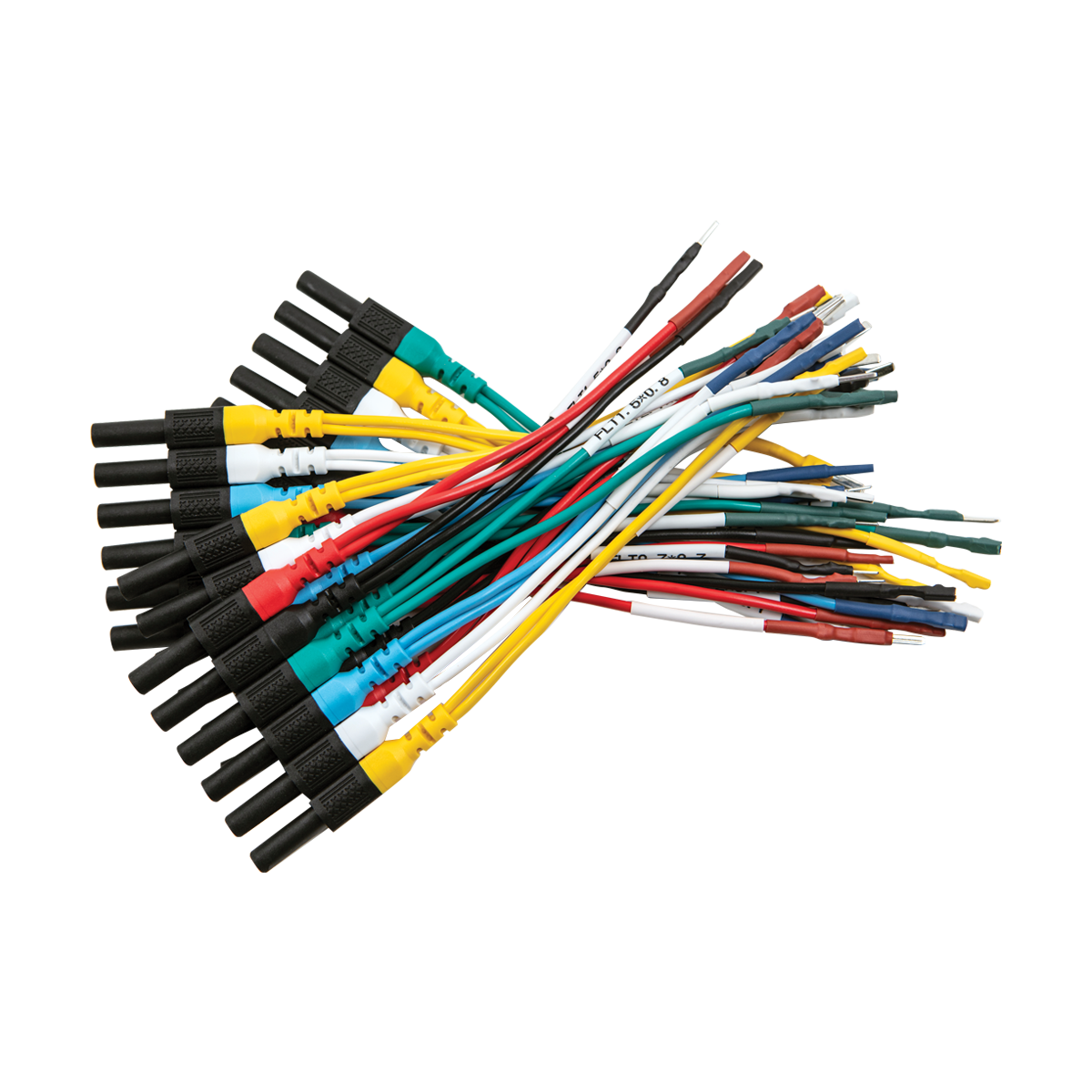

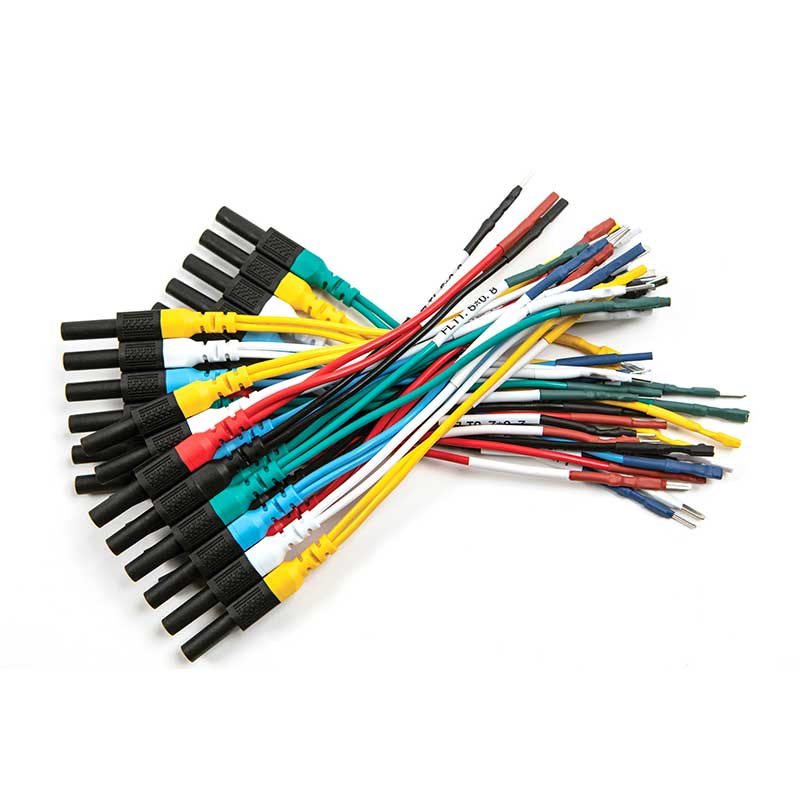

- Six breakout leads in four sizes: 0.6 mm, 1.5 mm, 2.3 mm and 2.8 mm.

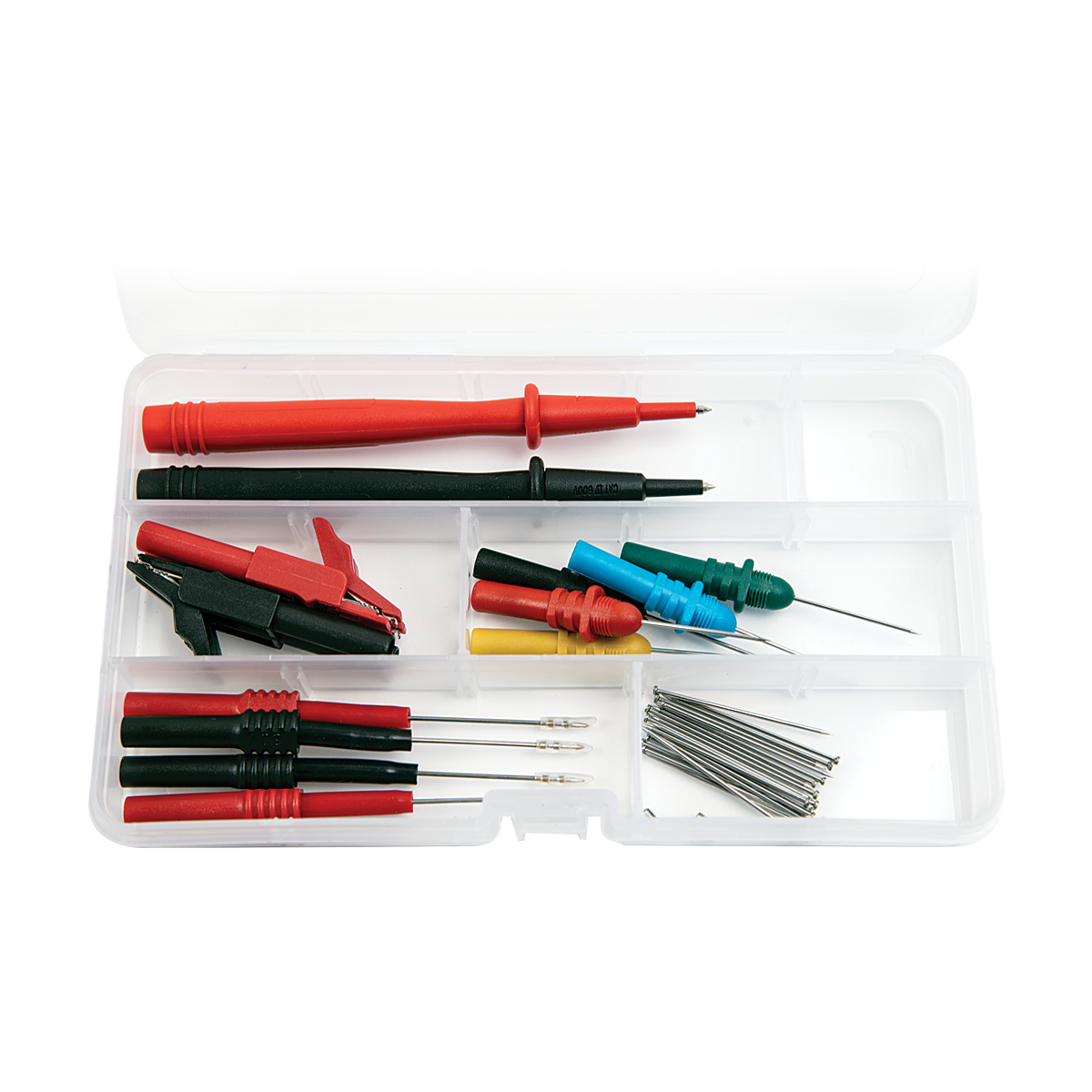

- Two flexible back-pinning probes.
- Five color-coded back-pinning probes: red, green, blue, yellow and black.
- 20 back-probe needles and two probe screws.

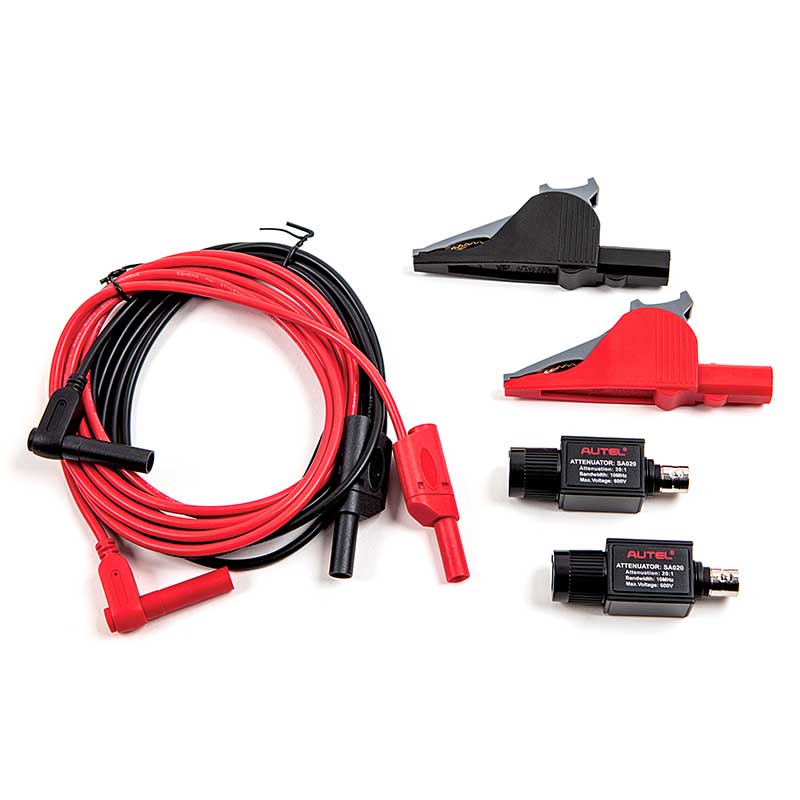

- Two large dolphin clips: SA057 red and SA058 black.
- Two small crocodile clips: SA059 red and SA060 black.
- Two 20:1 passive attenuators.
- Plastic tool box for small parts.
Warranty
Includes a one-year limited warranty.
